FW-70 Agricultural Drone
Category:
- Description
-
FW-70 PLANT PROTECTION DRONE DETAIL
FW-70 is a super large capacity agricultural drone, there is hardly any drone of the same type above the market.
It can spray 28-30 hectares of fields per hour with very high efficiency, uses smart batteries, and charges quickly. Perfect for large areas of farmland or fruit forests.
The machine is packed in an airline box, which can ensure that the machine will not be damaged during the transportation.FW-70 PLANT PROTECTION DRONE FEATURES
A new generation of fly-defense experts:
1. From top to bottom, 360 degrees without dead angle.
2. Adopt high-quality flight control, intelligent battery, the highest grade 7075 aviation aluminum structure, to ensure stable flight and safe operation.
3. GPS positioning function, autonomous flight function, terrain following function.
4. Exported to many countries and regions, high stability and durability can bring you more revenue.FW-70 PLANT PROTECTION DRONE PARAMETERS
Material Aerospace carbon fiber + Aerospace aluminum Expand size 3920mm*3920mm*970mm Folded size 1050mm*900mm*1990mm Weight 51KG Maximum takeoff weight 147KG Maximum load 72L/75KG Flight altitude ≤ 20m Flight speed 1-10m/s Spray rate 8-15L/min Spraying efficiency 28-30ha/hour Spraying width 8-15m Droplet size 110-400μm ROUTE PLANNING

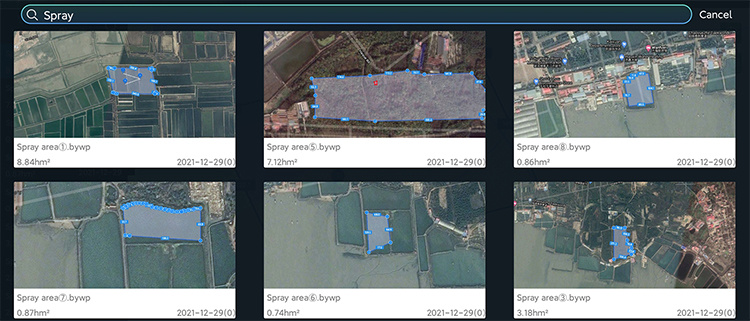

Drone route planning is divided into three modes.Plot mode, Edge-sweeping mode and Fruit tree mode. • Plot mode is a commonly used planning mode. 128 waypoints can be added.Freely set the altitude, speed, obstacle avoidance mode, and flight path.Automatically upload to the cloud, Convenient for the next spray planning. • Edge-sweeping mode, the drone sprays the boundary of the planned area. Arbitrarily adjust the number of laps for sweeping flight operations. • Fruit tree mode. Developed for spraying fruit trees. The drone can hover, spin and hover at a certain point. Freely choose waypoint/route mode for operation. Set fixed points or slopes to effectively prevent accidents
